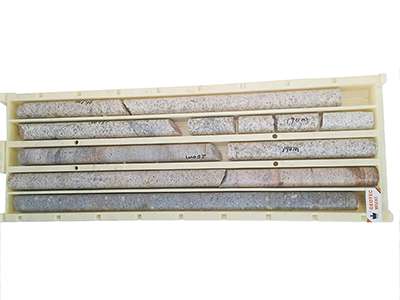

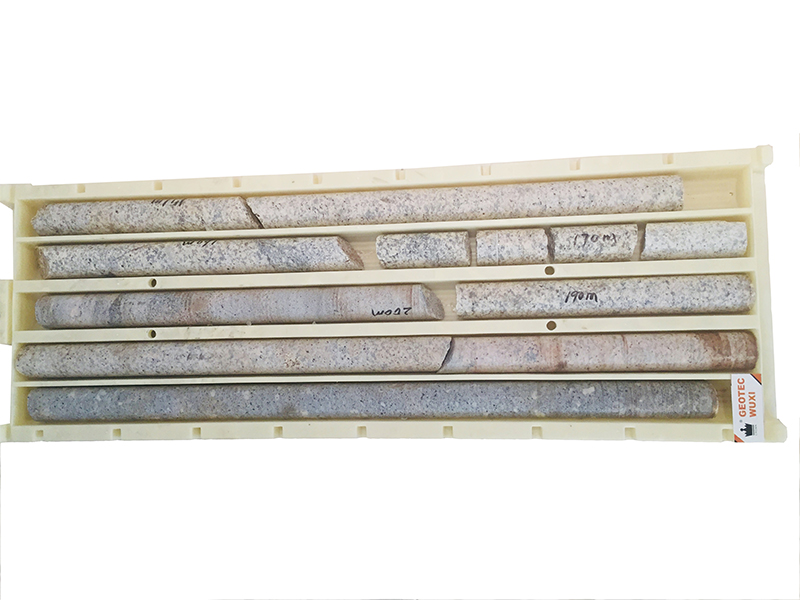

Drill core box is a container for reserving drill core extracted in drilling work. It is made of quality plastic materials. The drill core, after being extracted from drilling hole, will be put in the drill core box in order for the geological personnel to record in time. And after being recorded, the drill core will be labeled with numbers and put into the drill core library for storage.
SpecificationsModel | Size | Inseam Length | Width of each slot | Length of Cores to hold | Lattices Nos | Weight |
NWL | 1070 × 385 × 55 | 1m | 55 mm | 5 m | 5 | 2.20 kgs |
HWL | 1070 × 385 × 70 | 1m | 69 mm | 4 m | 4 | 2.40 kgs |
PWL | 1070 × 385 × 93 | 1m | 92 mm | 3 m | 3 | 2.80 kgs |
