Core Drill (XY-2)

Core Drill (XY-2)

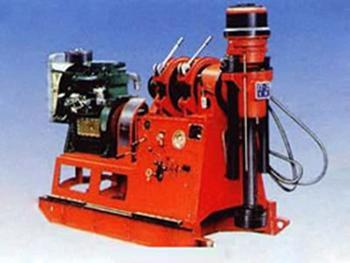

Brief Introductions of XY-2 Core Drill

XY-2 core drill is designed as a new type drill rig machine. With diamond or tungsten carbide bits, it is mainly applied for shallow and medium hole core drilling. XY-2 core drill can also be used in various industries, such as engineering geological, hydrogeological, water well and pile grouting hole drilling.

Features of XY-2 Core Drill
  • Easy operation and maintance.
  • Compact structure and light weight.
  • Easy to disassemble.
  • With the equipments of hydraulic and manual chucks, diesel engine and motor(if required).
  • High power capacity and wide speed range for adjusting.
  • Low running cost.
Specifications of XY-2 Core Drill
Drilling Capacity
Core Drilling Rod
Φ42 530m
Φ50 380m
Φ60 200m
AW 530m
BW 420m
NW 320m
Wire-line Core Drilling Rod
Φ53 500m
Φ55.5 440m
AWL 565m
BWL 460m
NWL 350m
Hydraulic, Foundation Drilling Rod
Ф60 (Φ150mm) 250m
Ф60 (Φ200mm) 200m
Ф73 (Φ300mm) 100m
Swivel Head
Spindle I.D. 76mm
Spindle Speed (rpm) Forward 65, 114, 180, 248, 310, 538, 849, 1172
Reverse 51, 242
Spindle Stroke 600mm
Max. Torque of Spindle 2760N.m
Max. Pressuring Force of Spindle 45kN
Max. Lifting Force of Spindle 60kN
DRILLING ANGLE 0-90°
HOIST
Drum Diameter 200mm
Drum Length 160mm
Hoist Capacity (Single Rope) 30kN
Lifting Speed (m/s) 0.515, 0.894, 1.412, 1.948
Wire Rope Φ12.5 or 14mm
Drum Capacity (Five Layers) 50/45m
HYDRAULIC PUMP
Duplicate-gear Oil Pump SCB32/12
Displacement (L/min) 32+12L/min
Working Pressure 8MPa
Max. Pressure 12MPa
SKID-TYPE FRAME
Retraction Stroke 400mm
Retraction Distance from Hole 243mm
POWER UNIT (Optional)
Electric Motor Y180L-4; 22kW; 1470rpm
Diesel Engine 395K2; 27HP; 1500rpm
Overall Dimension LxWxH 2150X900X1690mm
Weight (without power unit) 950kg
