Impregnated Diamond Bits, Core Drill Bits

Impregnated Diamond Bits, Core Drill Bits
Brief Introductions of Impregnated Diamond Bits

Impregnated diamond bits are the most commonly used bits in mineral exploration. The drill bit keeps self-sharpening during the drilling process to maintain the performance. The matrix layer of the crown contains a uniform distribution of these crystals that are embedded in a powdered metal bond.

Specifications

We are able to provide various waterways to achieve best drilling efficiency.

Waterways of conventional drill bit

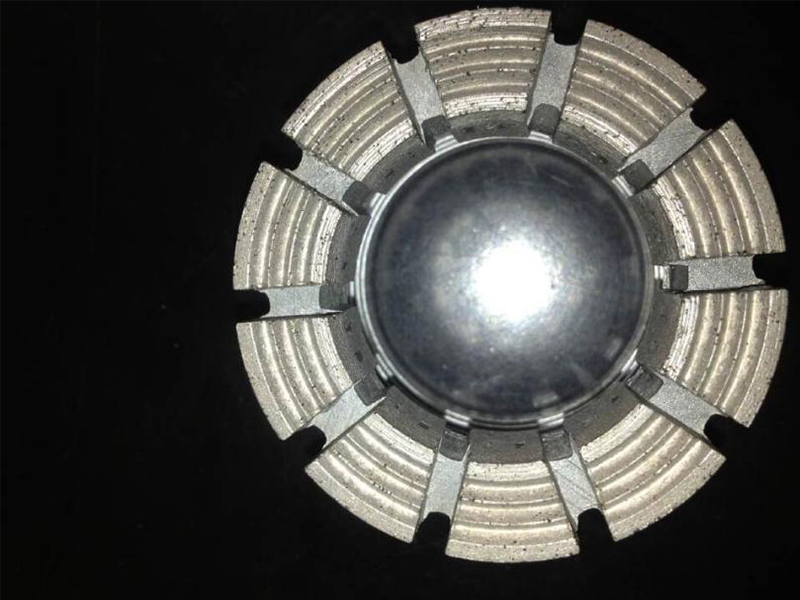

Standard Waterway
Can be used on most impregnated core bits
Great fluid circulation from the inside to the outside
Available with wider or larger waterway configurations

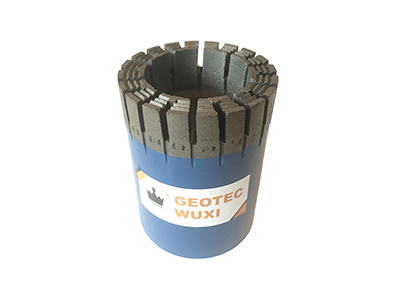

Turbo-style Configuration

Turbo-style Configuration
Drill bits with higher matrix available in 16mm, 18mm, 20mm and 26mm can effectively ensure the drill bits with longer service life and less change of drill bit, a good choice for deep hole drilling jobs.s

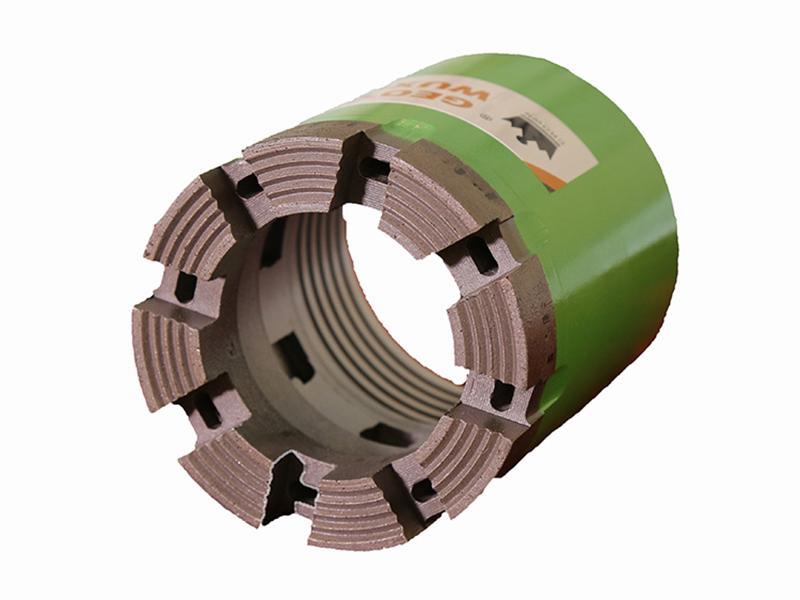

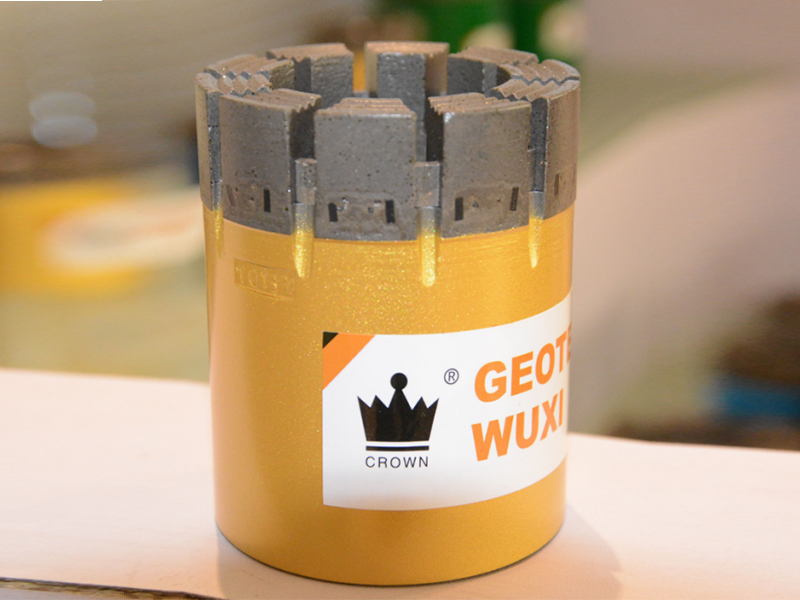

Face Discharge Configuration

Face Discharge Configuration
Recommended for very soft and broken ground
The face discharge ports offer excellent flushing to prevent blockages in the waterway channels
Available with wider or larger waterway configurations

Vortex Waterway

Vortex Waterway
Recommended for very hard, High Abrasiveness and broken ground.
Available with wider or larger waterway configurations

Height of bits matrix
Impregnated Diamond Bits, Core Drill Bits

The conventional drill bits with 10mm-high matrix can meet almost all needs, they are highly cost-effective.

Impregnated Diamond Bits, Core Drill Bits

Drill bits with higher matrix available in 16mm and 26mm can effectively ensure the drill bits with loner service life and less change of drill bits, a good choice for deep hole drilling woks.

Impregnated Diamond Bits, Core Drill Bits

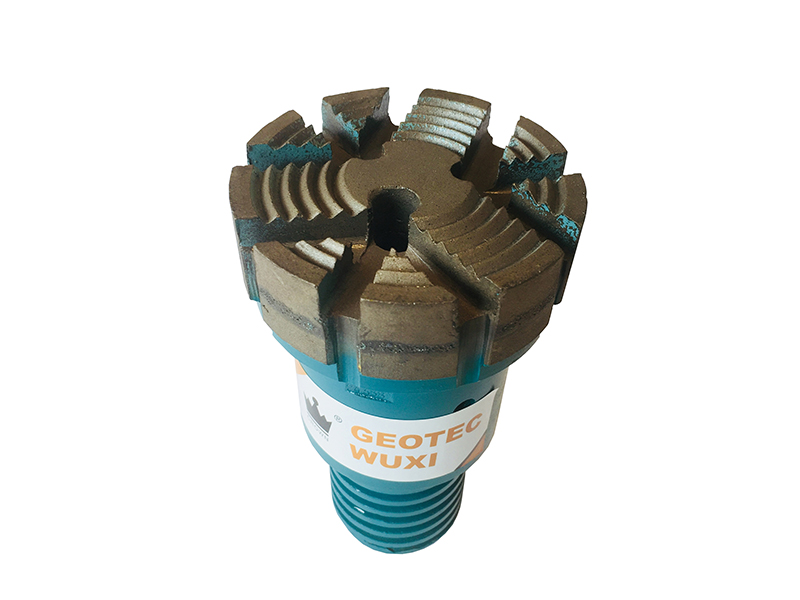

Directional drilling bits are used for directional drilling, with the drill bits circular cross-section designed and the central waterway being well designed.

Impregnated Diamond Bits, Core Drill Bits

Wedging bits are made to set wedges in the bore hole to alter the drilling direction.

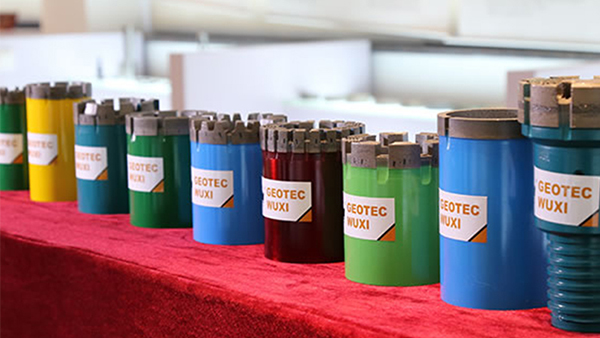

We are able to produce diamond bits with the following sizes:

Wireline Series: AWL, BWL, NWL, HWL, PWL, NWL-2, NWL-3, NWL-TT, HWL-3, HWL-TT, PWL-3, PWL -TT, AWL-TK, BWL-TK
T2 series: T2 46,T2 56,T2 66,T2 76,T2 86,T2 101
T6 series: T6 76,T6 86,T6 101,T6 116,T6 131,T6 146, T6S 101,T6S 116
T series: T36,T46,T56,T66,T76,T86
Z series: Z46,Z56,Z66,Z76,Z86,Z101,Z116,Z131,Z146
B series: B36,B46,B56,B66,B76,B86,B101,B116,B131,B146
WF series: HWF,PWF,SWF,UWF,ZWF
WT series: RWT,EWT,AWT,BWT,NWT,HWT
WM series: EWM,AWM,BWM,NWM,HWM
WG series: EWG,AWG,BWG,NWG,HWG
Others: NMLC, HMLC, LTK48, LTK60, BGM,NGM, ADBG, TBW, TNW, ATW, BTW, NTW, NXD3, AX, NX, NXC, AXT, T6H, 4 9/16, NWD4, 412F, SK6L146, TT46, TB56, TS116, CHD101

When choosing the drill bits products, customers should choose products with proper hardness of matrix according to hardness and abrasiveness of the rocks.
Rock Type Abrasiveness Rock Hardness Item. No Color
Clay, Shale, Siltstone, Gypsum Medium Soft NF1# Impregnated Diamond Bits, Core Drill Bits
Ash Stone, Coal, Argillite, Volcanics, Sandy Pebble Very High Soft NF1/ NF2 Impregnated Diamond Bits, Core Drill Bits
Sandstone, Sandy Shale, Lithoid limestone, Limonite Sandstone Very High Medium Soft NF1#/ NF2 Impregnated Diamond Bits, Core Drill Bits
Medium-hard Limestone, Medium-hard Shale, Medium-hard Ash Stone High Medium NF3/ NF4 Impregnated Diamond Bits, Core Drill Bits
Marble, Hard Schist, Hard Streak Stone Medium Medium NF5/ NF6/ NF7 Impregnated Diamond Bits, Core Drill Bits
Diabase, Andesite, Gneiss Medium Medium Hard NF6/ NF7 Impregnated Diamond Bits, Core Drill Bits
Grandiorite, Limonite Medium Medium Hard NF7/ NF8 Impregnated Diamond Bits, Core Drill Bits
Granite, Basalt, Hard Streak Stone Medium To Low Hard NF8/ NF9 Impregnated Diamond Bits, Core Drill Bits
Rhyolite, Crystauize Genesis, Quartz Porphyry Medium To Low Hard NF9/ NF10 Impregnated Diamond Bits, Core Drill Bits
Silicious Stone, Hard Sandstone Medium To Low Extreme Hard NF11/ NF12 Impregnated Diamond Bits, Core Drill Bits
Rhyolite, Dense Quartzite, lron Stone Low Ultra Hard NF14 Impregnated Diamond Bits, Core Drill Bits

For some special and complicated rock formations, it’s necessary to customize drill bits according to practical conditions of the layers. We are able to provide design services and professional consulting team to effectively save time and cost for our customers.

Features of Impregnated Diamond Bits
  • This diamond tool features fast penetration rate, because the matrix of our impregnated diamond bits is specially designed (it is designed to expose new diamonds to the bits' cutting face as wear occurs).
  • Help reduce the cost for diamond drilling: our impregnated diamond bits are manufactured to give optimum penetration rates and service life.
  • The hardness and abrasiveness of the formation to be drilled largely determined the optimum diamond size, concentration and matrix type, etc.
Some suggestions for better use of our diamond bits:

SOFT ROCK FORMATIONS Low RPM’s
Large diamonds/cutters
Large waterways for better flushing and higher GPM flow rates
Hard matrix for longer bit life

HARD ROCK FORMATIONS

High RPM’s
Small diamonds/cutters
Small waterways
Soft matrix to expose more cutting elements
